PIANO re-STRINGING

Piano Re-Stringing – Before

The steel strings mainly need to be replaced on a piano because they have rusted. This can be caused from moisture in the air, high humidity, the placement of piano in room and other factors.  Once the strings are in this condition the piano cannot be tuned. It can also lead to other components being damaged inside the piano if not treated. Once the new strings are fitted the tone of the piano will greatly be enhanced!

A comprehensive inspection is required before this work is carried out. The tuning plank needs to be inspected to see if the new tuning pins will hold the tension of the strings. All the bridges need to be examined to see if they are not split or cracked. Sound board and ribs need to be inspected for splits and cracks. The correct bearing on the strings over the bridges needs to be examined.

Kawai Model GM-10 - before restring | Prestige Piano Services

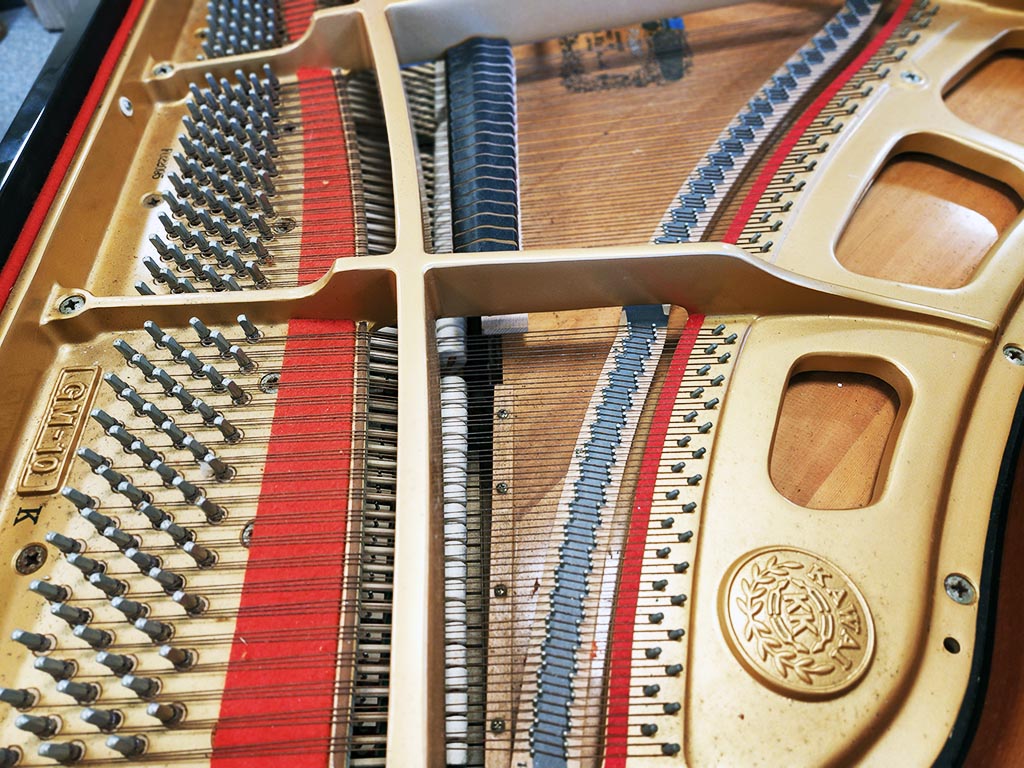

Kawai Model GM-10 – before restring
kawai-piano-restring-before-2-1024

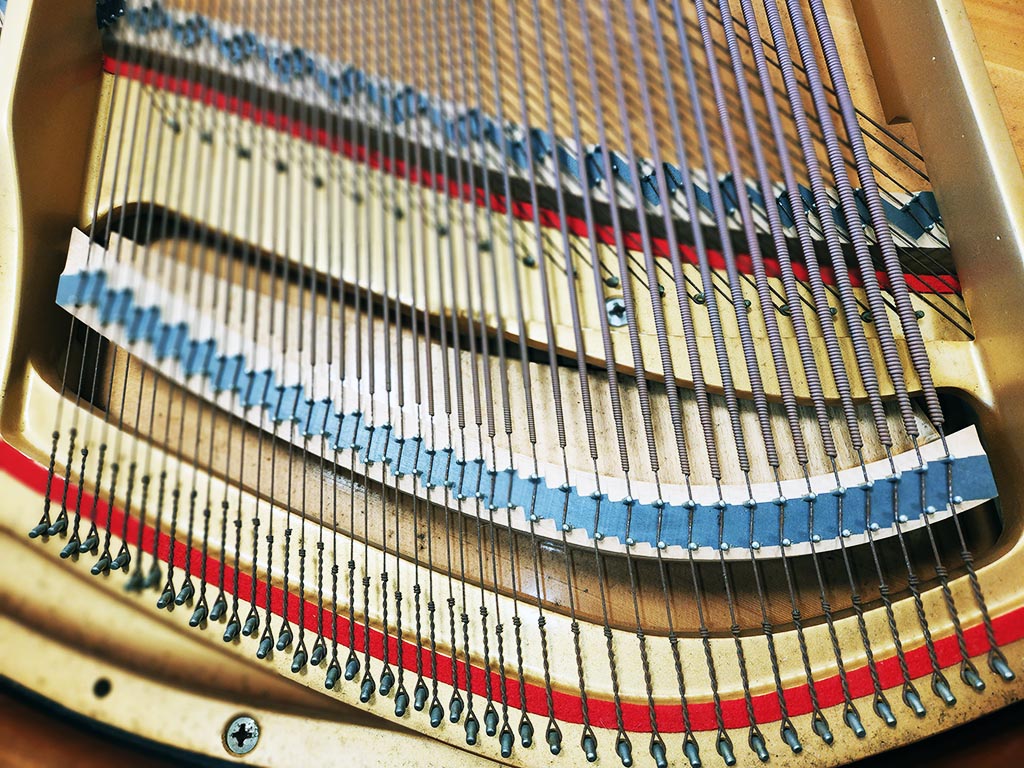

Kawai Model GM-10 – before restring
kawai-piano-restring-before-3-1024
Kawai Model GM-10 – before restring
PIANO re-STRINGING

Piano Re-Stringing – removing strings

The process of removing the strings involves a number of steps:

  • The string tension needs to be released evenly over the entire range to avoid the frame cracking.
  • The torque needs to be measured to determine the size of the new tuning pins.
  • Removing tuning pins and bass strings.
  • Cutting off old coiled strings
  • 6 Removing strings.
kawai-piano-restring-removing-strings-1-1024

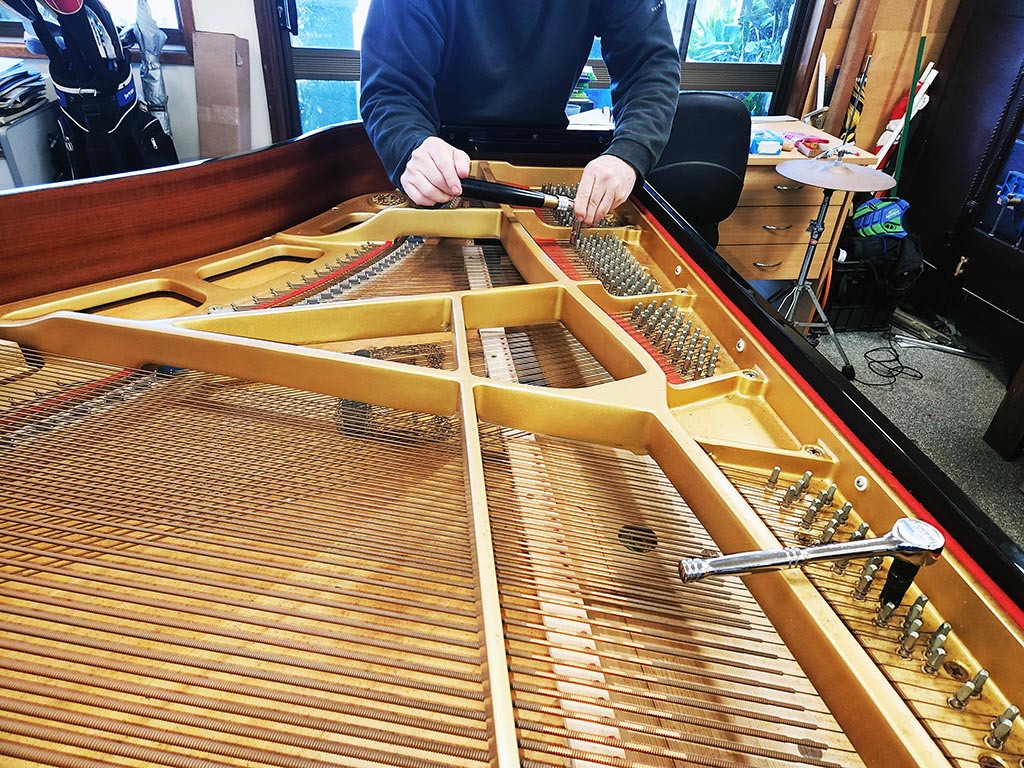

The string tension needs to be released evenly over the entire range to avoid the frame cracking.
kawai-piano-restring-removing-strings-2-1024
The torque needs to be measured to determine the size of the new tuning pins.
kawai-piano-restring-removing-strings-3-1024

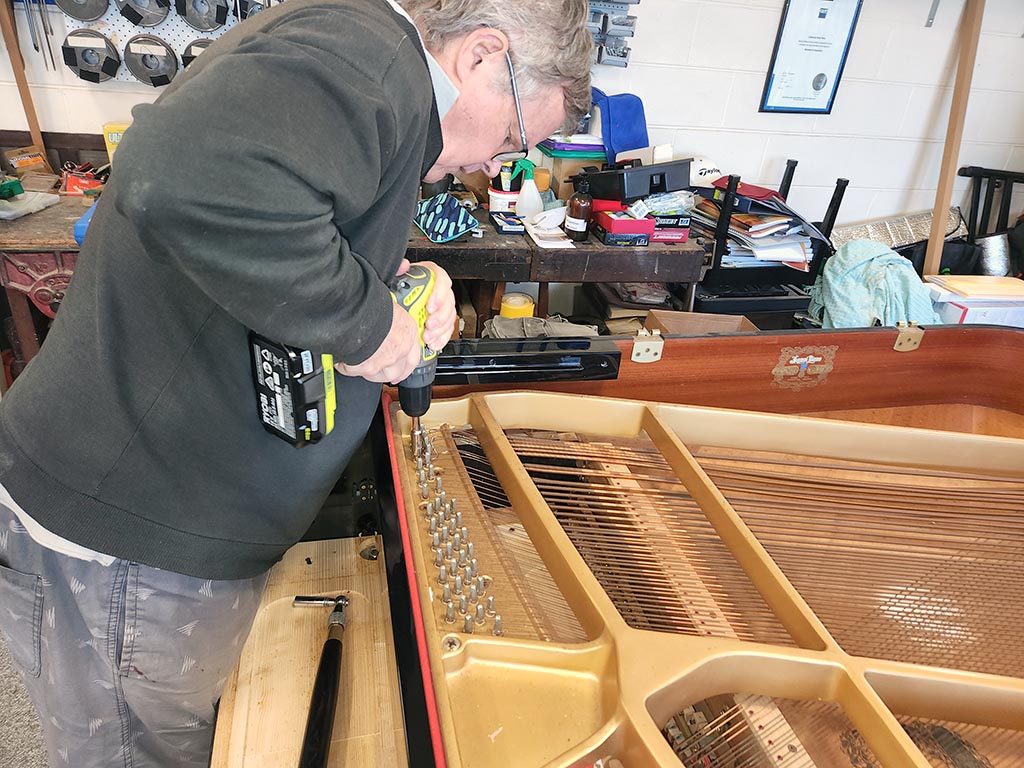

Removing tuning pins and base strings.
kawai-piano-restring-removing-strings-4-1024

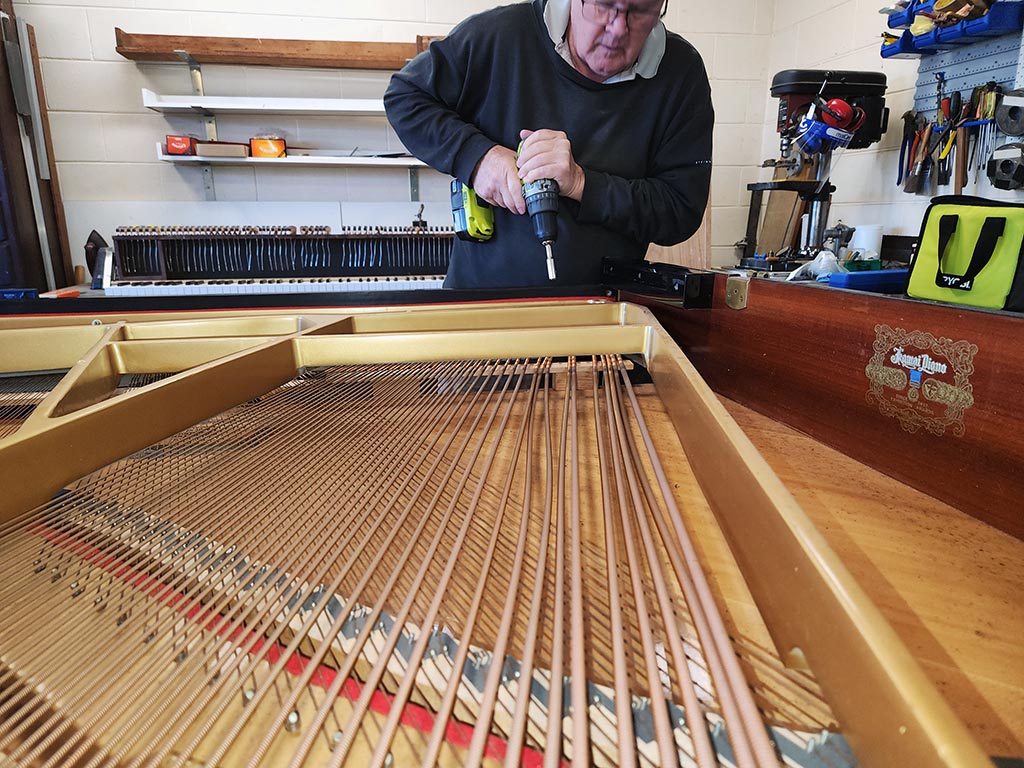

Removing strings.
kawai-piano-restring-removing-strings-5-1024

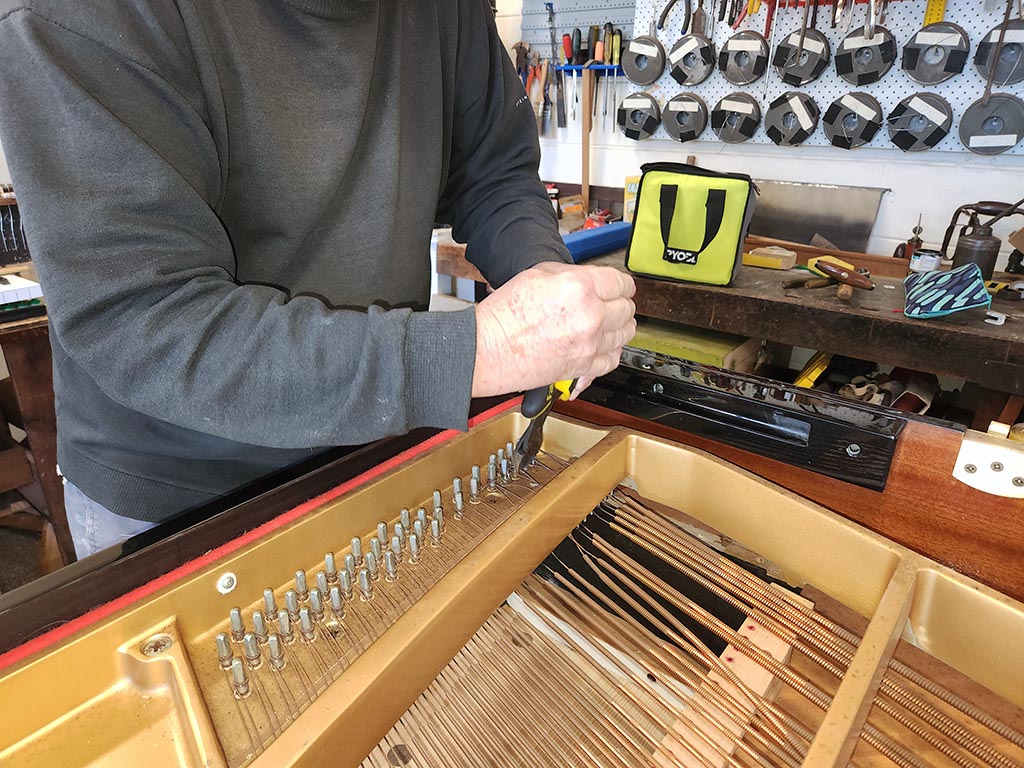

Cutting off old coiled strings
kawai-piano-restring-removing-strings-6-1024

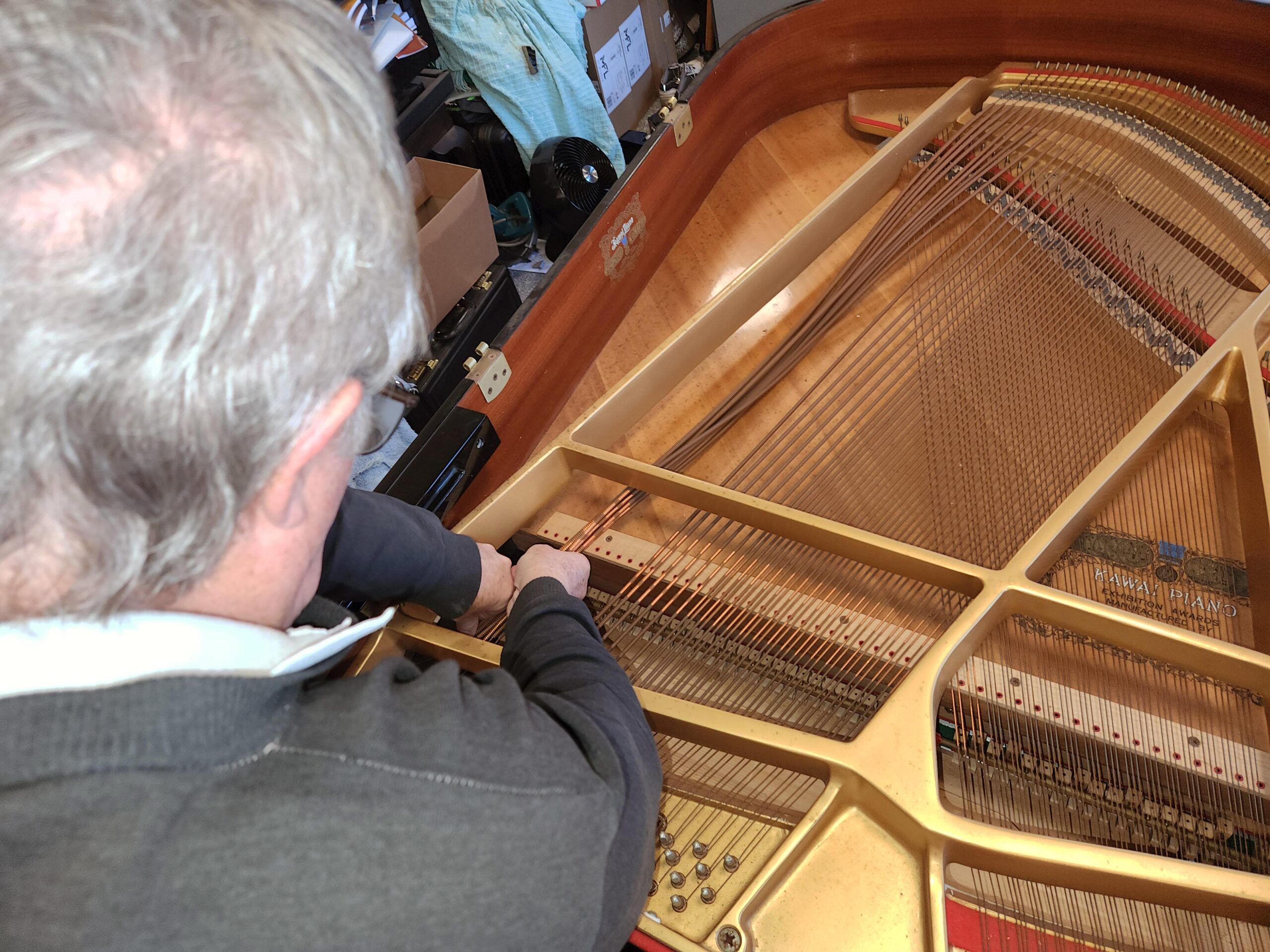

Removing strings.
PIANO re-STRINGING

Piano Re-Stringing – clean frame and soundboard

Cleaning the frame and soundboard involves the following steps:

  • All strings, and tuning pins have been removed. The frame, bridges, and sound board cleaned.
  • The frame screws need to be removed to buff.
  • Frame, bridges, sound board and key bed are cleaned.
  • Frame and sound board are polished.
kawai-piano-restring-clean-soundboard-1-1024

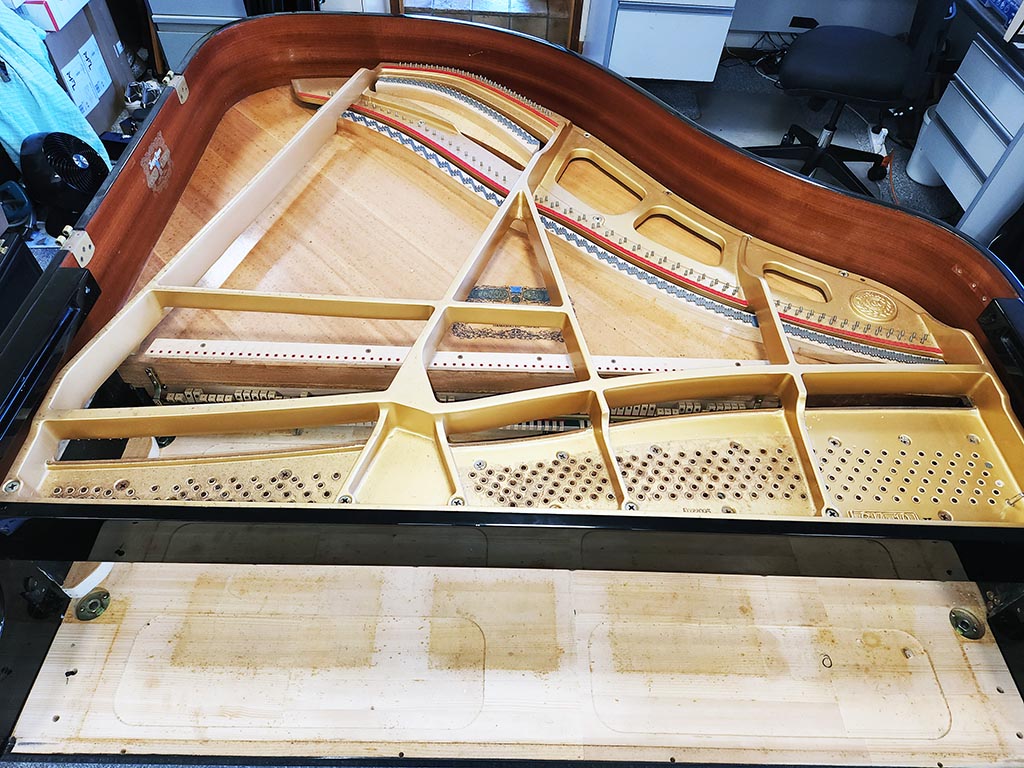

All strings, and tuning pins have been removed. The frame, bridges, and sound board cleaned.
kawai-piano-restring-clean-soundboard-2-1024

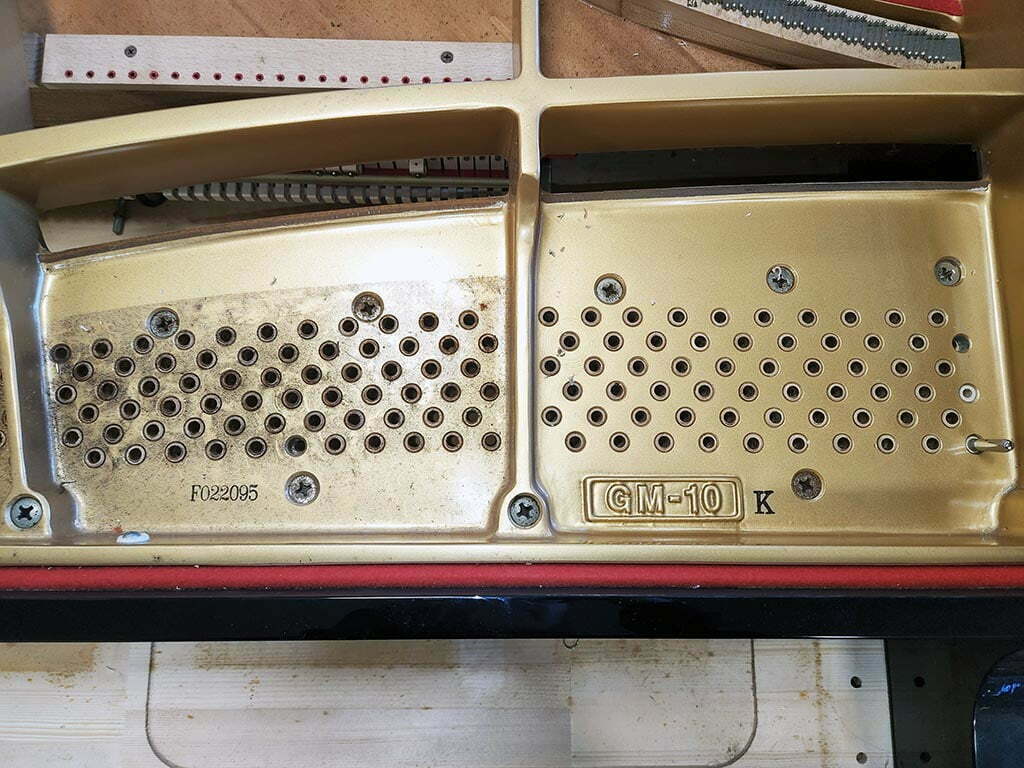

The frame screws need to be removed to buff.
kawai-piano-restring-clean-soundboard-3-1024

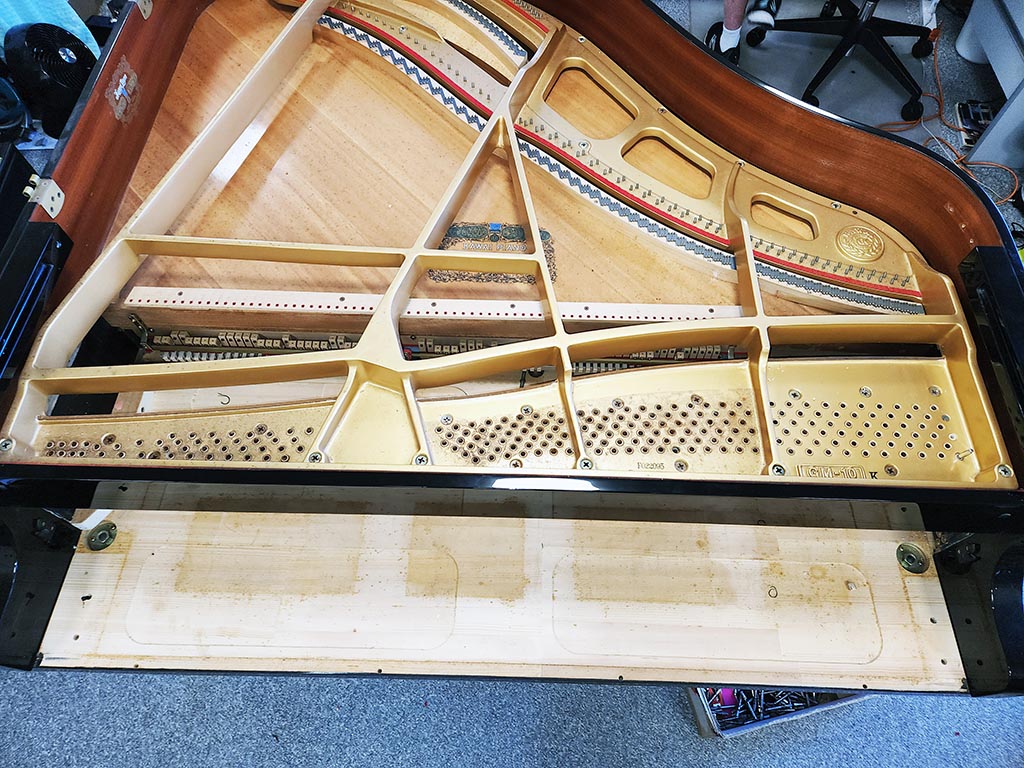

Frame, bridges, sound board and key bed are cleaned.
kawai-piano-restring-clean-soundboard-4-1024

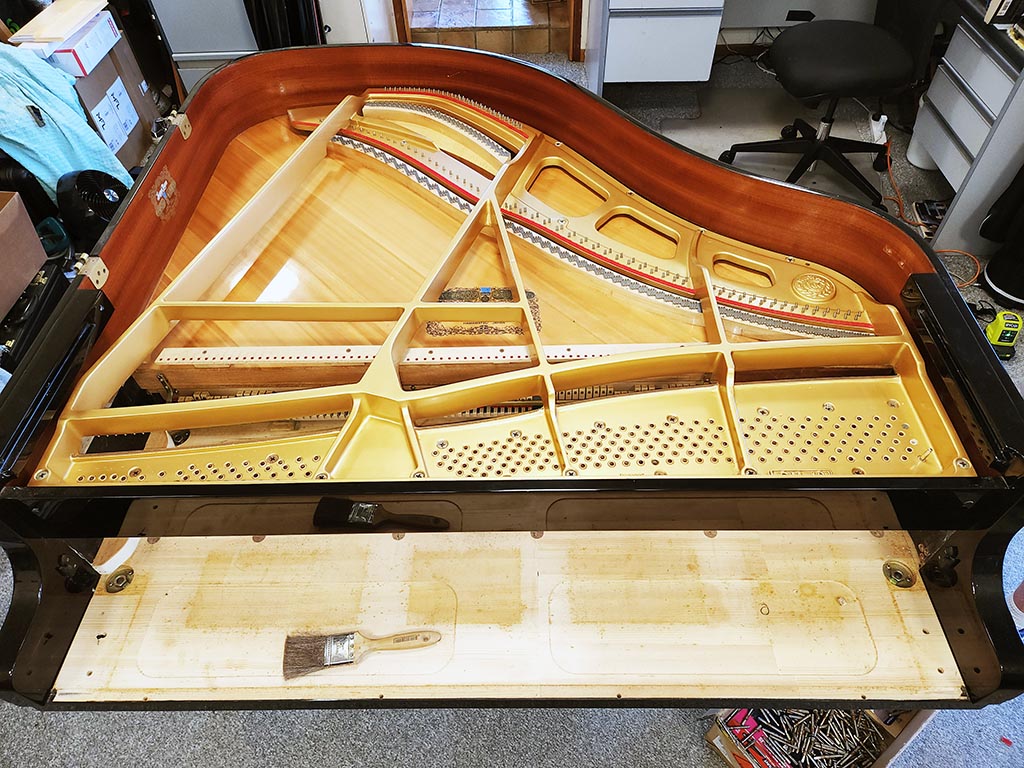

Frame and sound board are polished.
kawai-piano-restring-clean-soundboard-5-1024

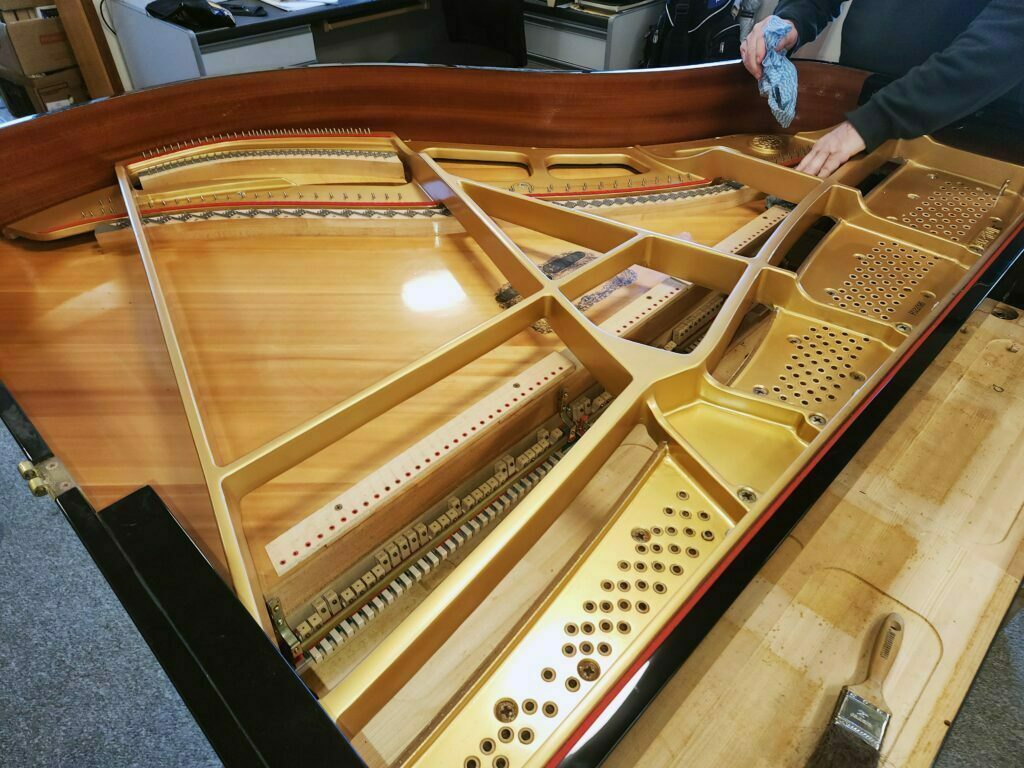

Frame and sound board are polished.
PIANO re-STRINGING

Piano Re-Stringing – replacing tuning pins

Replacing the tuning pins involves these steps:

  • Drilling out the old tuning pin collars.
  • Collars have been removed showing the top of the tuning plank.
  • Inserting new tuning pin collars
  • Drilling collars and tuning plank to fit the correct size tuning pins.
  • Inserting new tuning pin collars
kawai-piano-restring-tuning-pins-1-1024

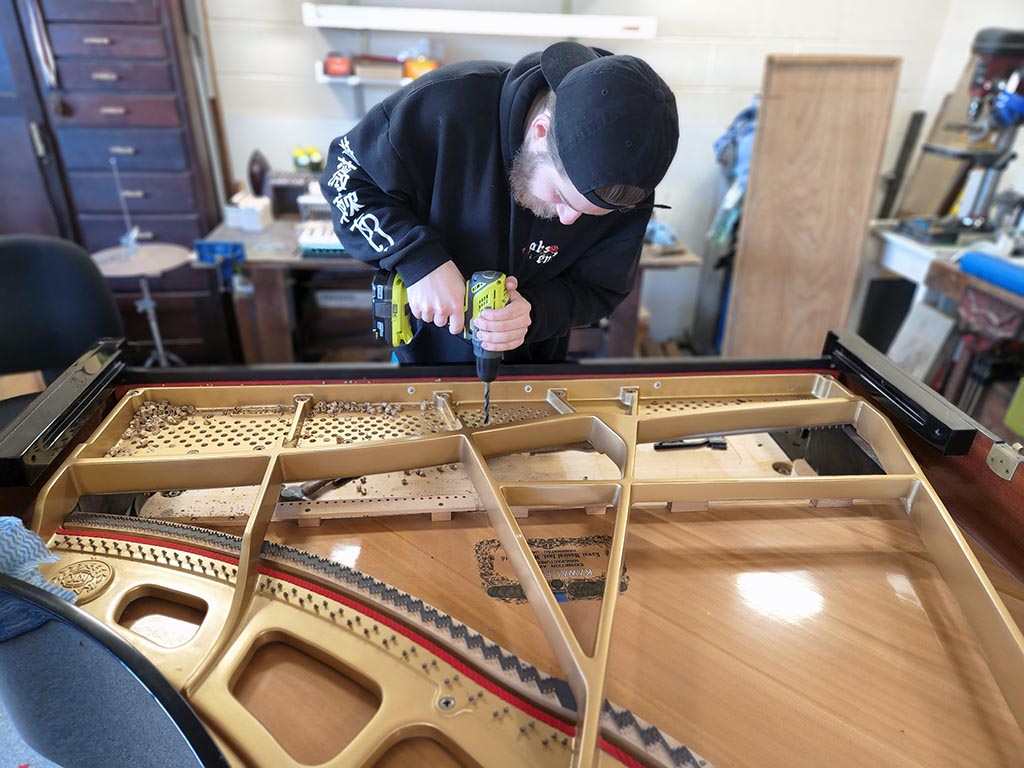

Drilling out the old tuning pin collars.
kawai-piano-restring-tuning-pins-2-1024

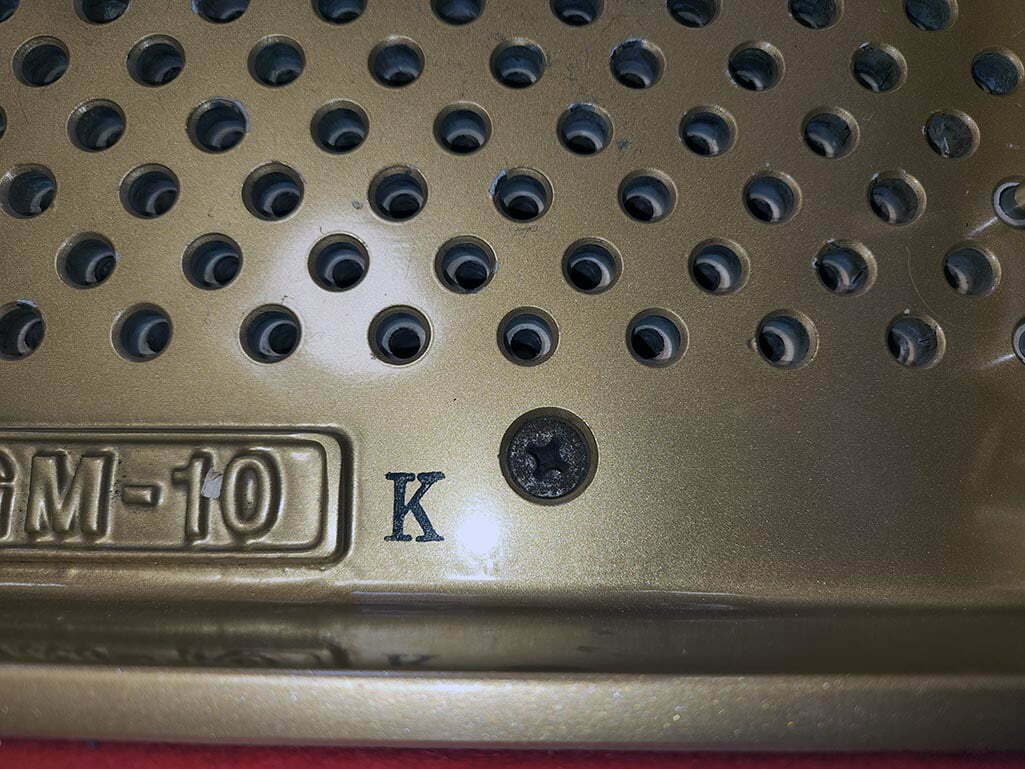

Collars have been removed showing the top of the tuning plank.
kawai-piano-restring-tuning-pins-5-1024

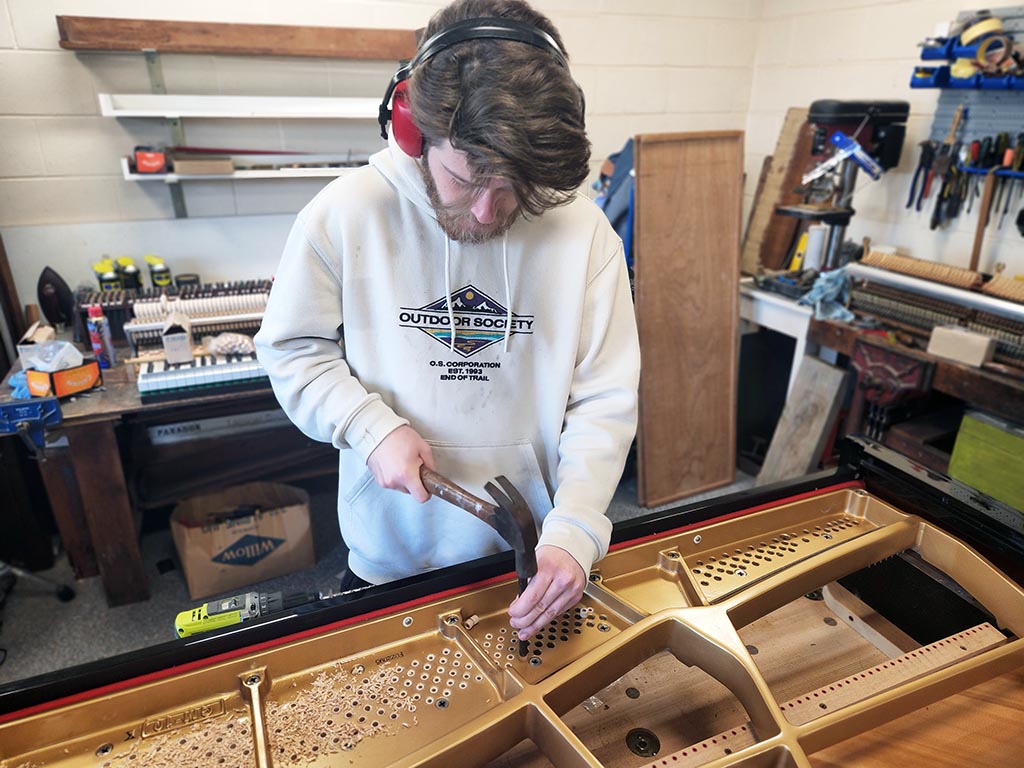

Inserting new tuning pin collars.
kawai-piano-restring-tuning-pins-4-1024

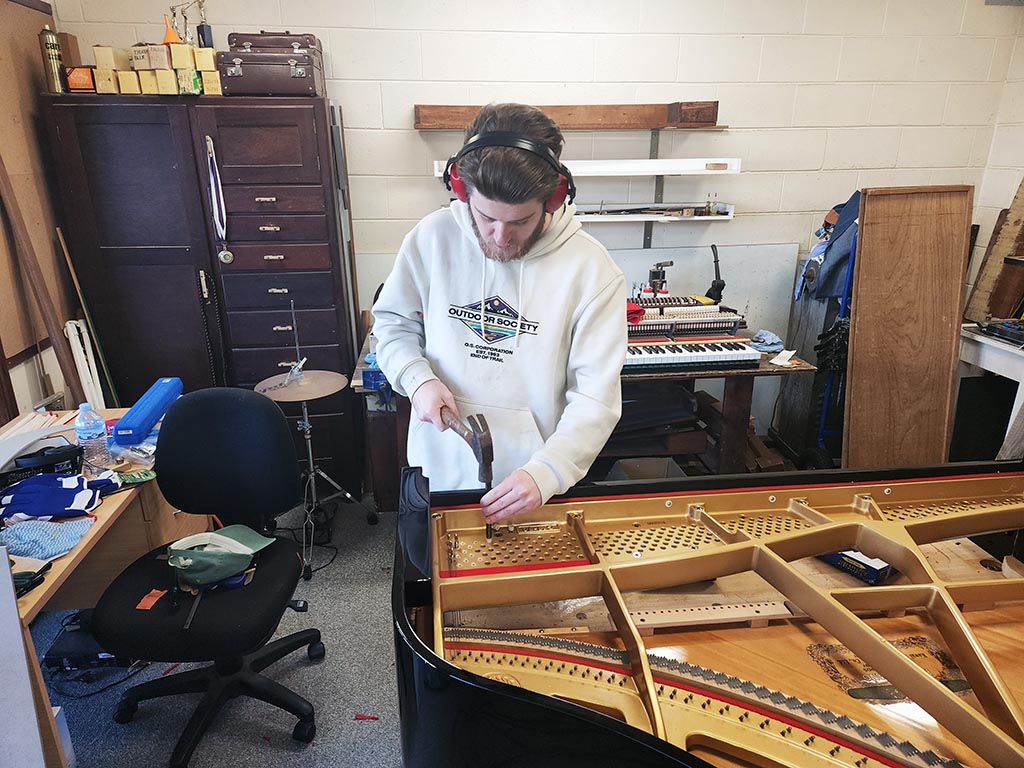

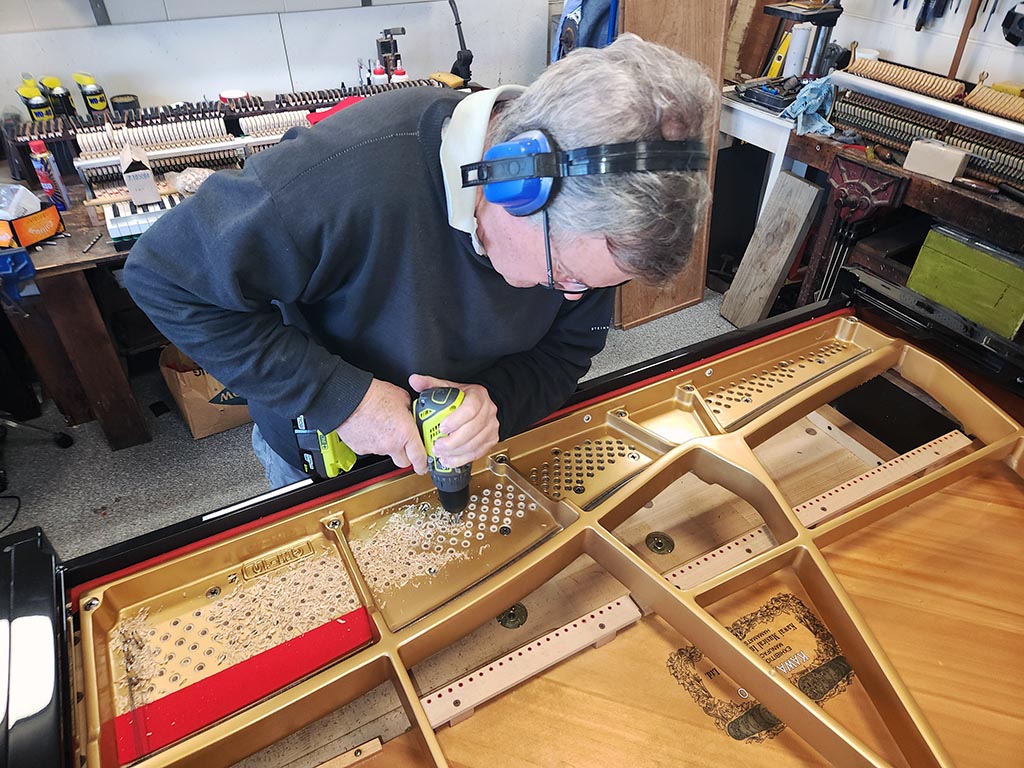

Drilling collars and tuning plank to fit the correct size tuning pins.
kawai-piano-restring-tuning-pins-3-1024
Inserting new tuning pin collars.
PIANO re-STRINGING

Piano Re-Stringing – new strings

Custom made bass strings are being installed. Gloves are worn to prevent perspiration and skin oil touching the copper strings.

  • New string under felt has been fitted. Strings and tuning pins are fitted. Gloves are worn to prevent perspiration and skin oil touching the strings.
  • The string has precisely three coils attached to the tuning pin and must be a snug fit.
  • Fitting new tuning pins and strings.
kawai-piano-restring-new-strings-1-1024

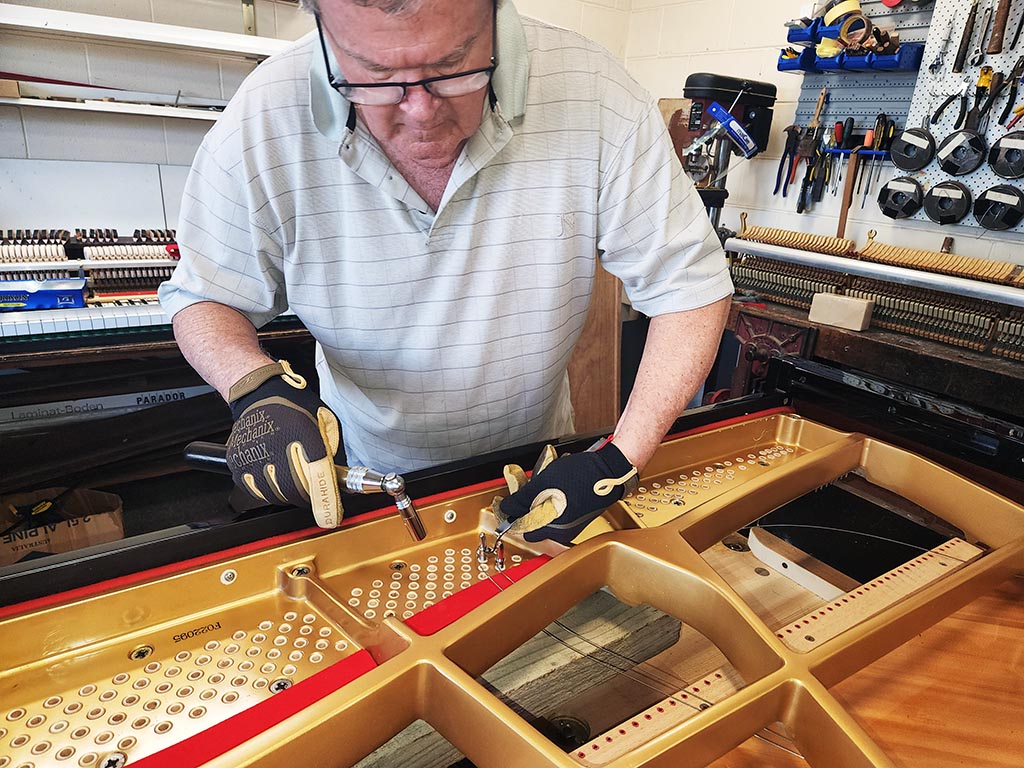

New string under felt has been fitted. Strings and tuning pins are fitted. Gloves are worn to prevent perspiration and skin oil touching the strings.
kawai-piano-restring-new-strings-2-1024

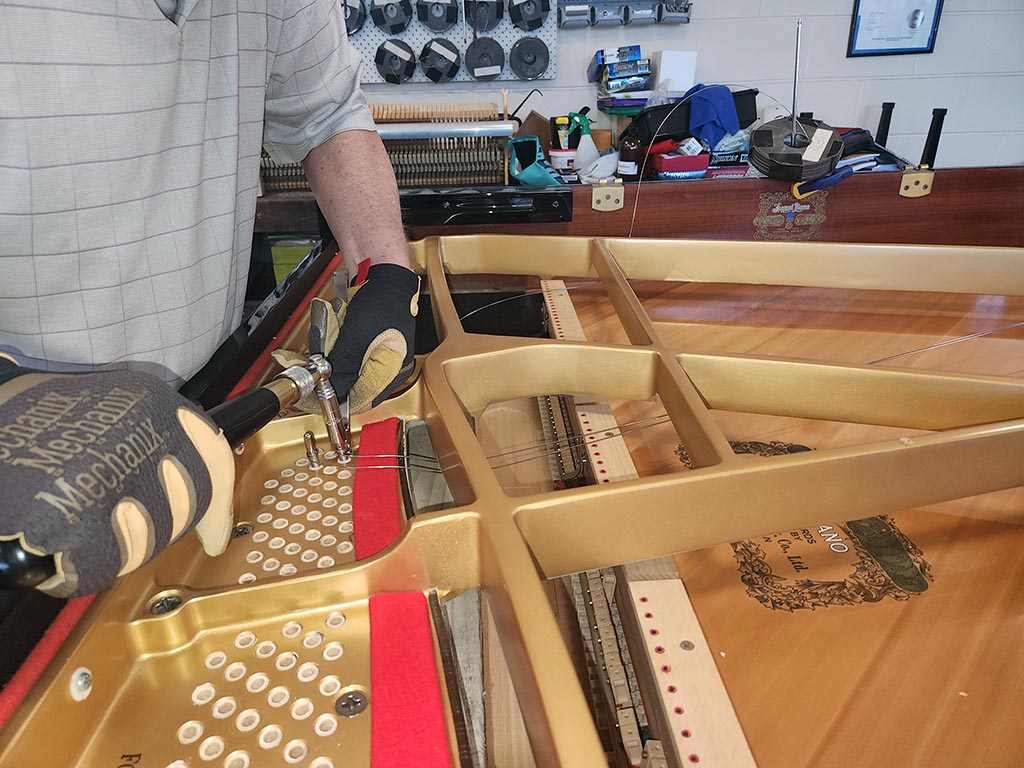

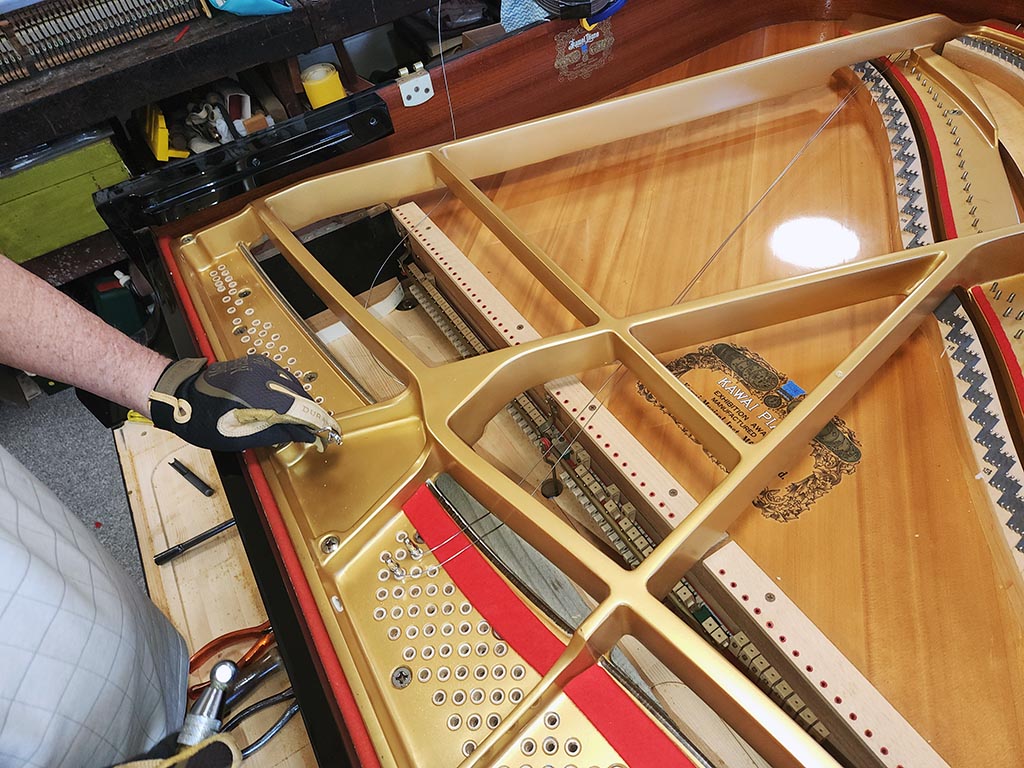

The string has precisely three coils attached to the tuning pin and must be a snug fit.
kawai-piano-restring-new-strings-3-1024

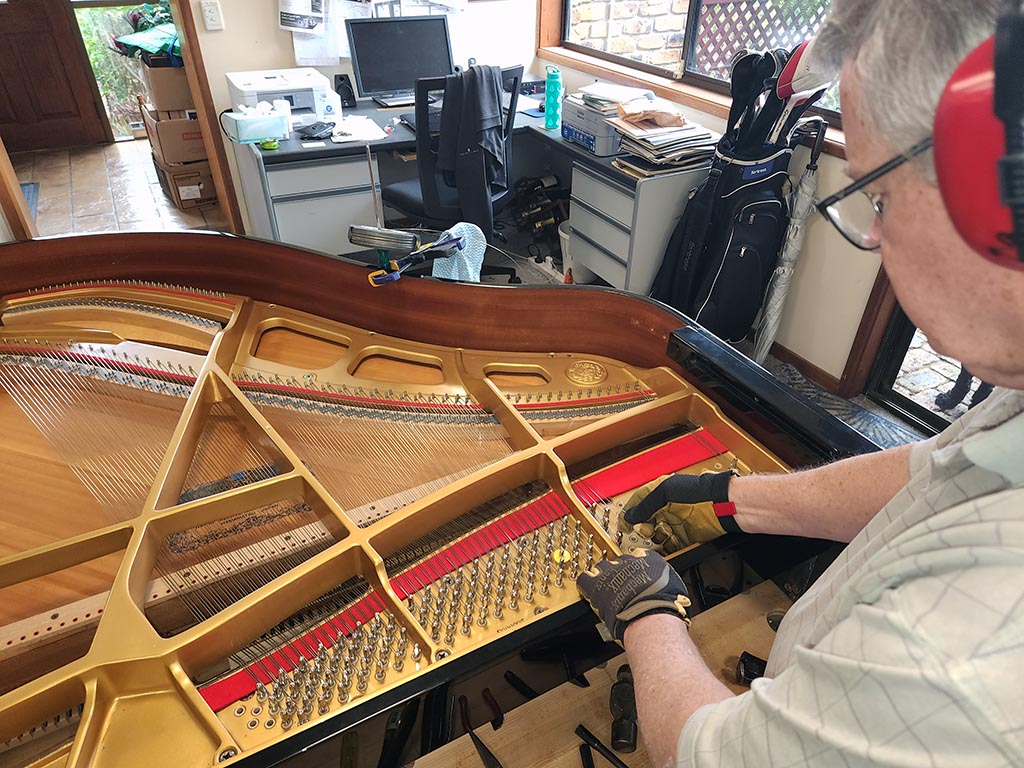

Fitting new tuning pins and strings.
kawai-piano-restring-new-strings-4-1024

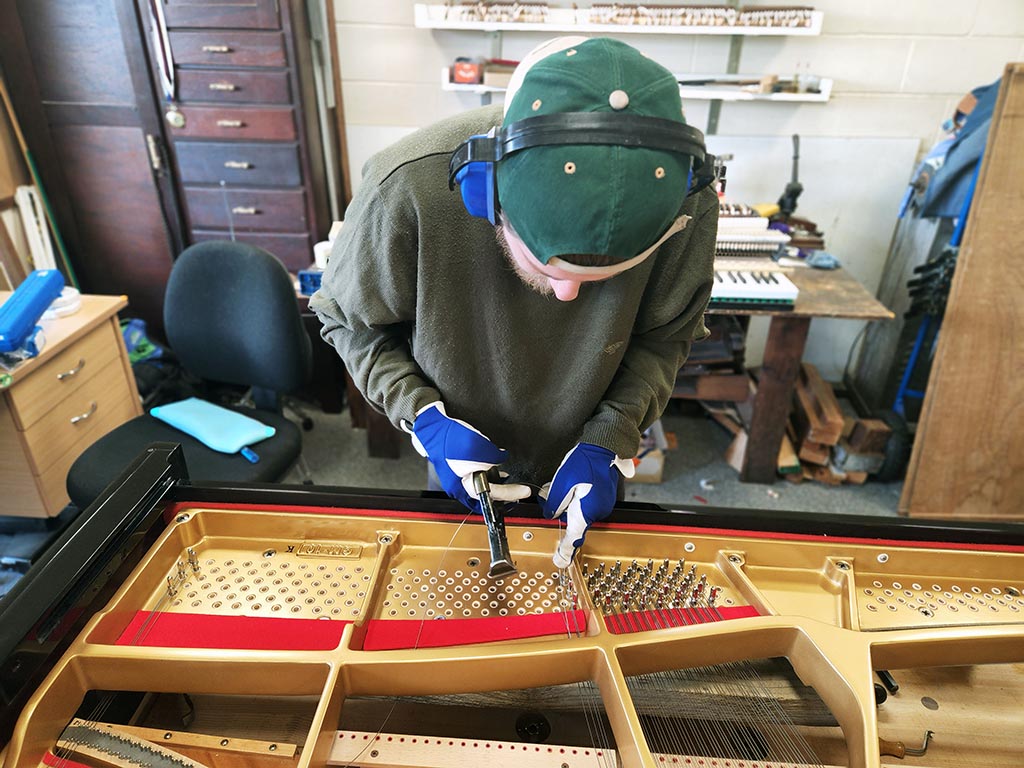

Fitting new tuning pins and strings.
kawai-piano-restring-new-strings-5-1024

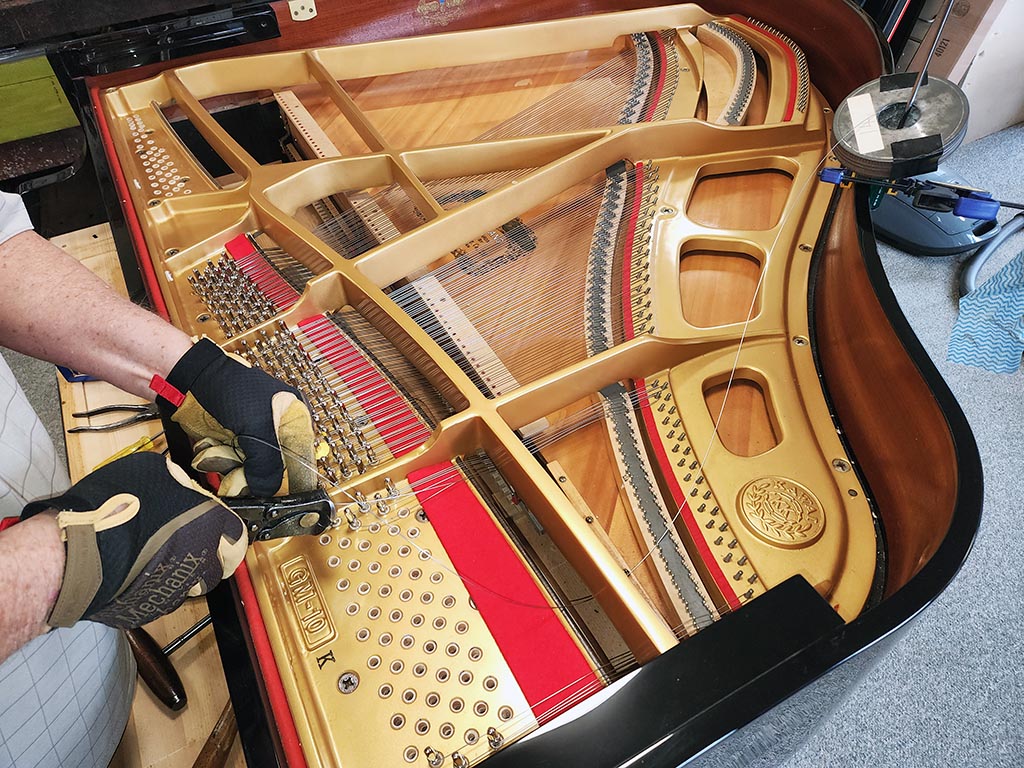

Fitting new tuning pins and strings.

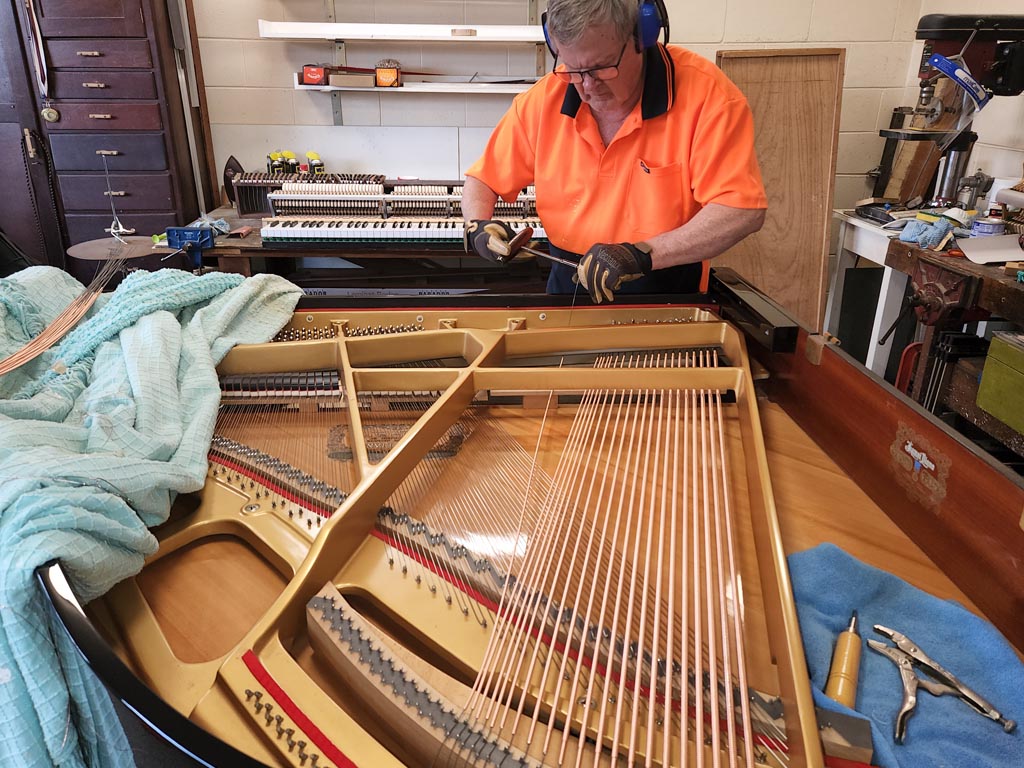

Replacing bass strings | Prestige Piano Services
Fitting new tuning pins and strings.

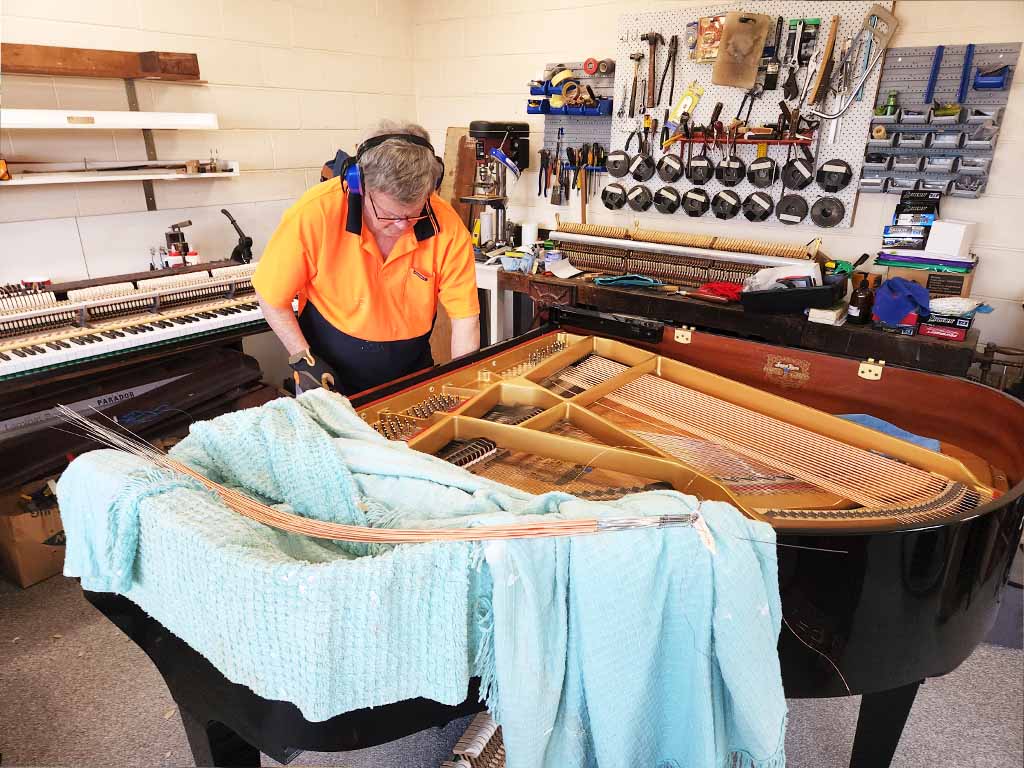

Replacing bass strings | Prestige Piano Services
Replacing bass stringsReplacing bass strings
Replacing bass strings | Prestige Piano Services

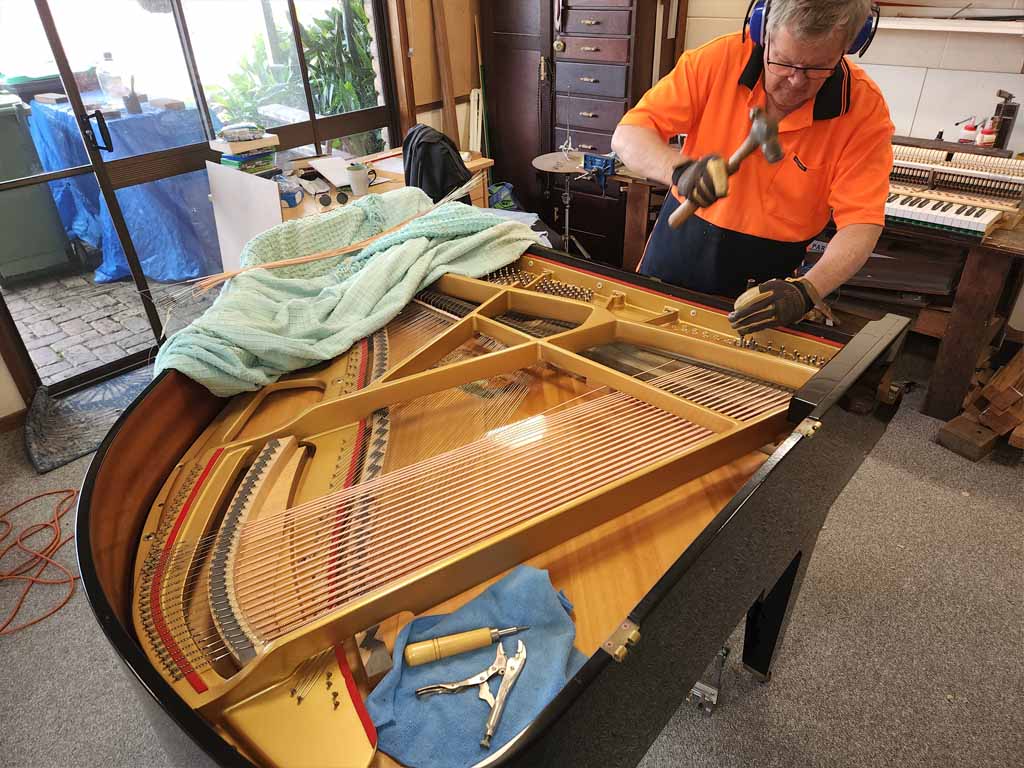

Replacing bass strings
Replacing bass strings
